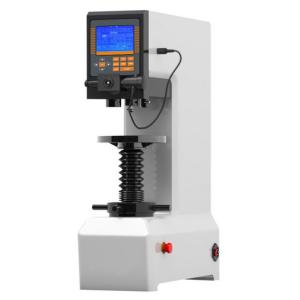

LCD Screen Built-in Printer Digital Brinell Hardness Tester with 10X Eyepiece
Model: HBS-3000
Brief Introduction:
Digital display Brinell hardness tester HBS-3000 uses computer software programming, photoelectric sensing technologies. Through button input, select the test method and hardness scales displays on LCD large screen.
Also displays the test method, test force, measuring indentation length, hardness value, dwell time, and hardness conversion, with built-in printer,RS-232 interface.
Main Functions and Features:
1, HBS-3000 is a high precision, high repeatability and stability hardness testing machine, easy operation, convenient and practical, cost-effective.
2, Integrated digital microscope and precise data calculation system to display the hardness value directly with just one click;
3, Equips with precision sensors and computer control system, the test results are accurate and stable;
4, Automatically enter the indentation diameter, directly display the hardness value, support hardness conversion;
5, Equips with high-performance stepper motor automatically loading, dwell and unloading, low noise during the testing process;
6, Self-designed optical system, image clarity, brightness adjustable, long-term operation should not be fatigue;
7, with data transmission RS232 interface, the measurement data can be transmitted to the computer for editing and saving;
8, The shell is cast once, the structure is stable without deformation, and it can work in a relatively harsh environment; The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;
Application Range:
1,suitable for hardness tester with large grain metal materials, can reflect the comprehensive performance of the material;
2, cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.
3, can be used for hard plastic, bakelite and other non-metallic material hardness tester
Technical Specifications:
| Model |
HBS-3000 |
| Brinell ruler |
HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000 |
| Test force |
62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Maximum height of test piece |
280mm |
| Indenter to wall distance |
150mm |
| Indenter - Upper wall distance |
55mm (support customized) |
| Minimum measurement unit |
0.125um |
| Dwell time |
0~60s |
| Hardness test range |
8~650HBW |
| Total magnification |
20X |
| Executive standard |
EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150 |
| Hardness reading |
Automatic calculation |
| power supply |
AC220+5%,50~60Hz |
| Dimensions(mm) |
565*230*7980mm |
| Weight of host |
About 200kg |
Accessories:
| Name |
Quantity |
Name |
Quantity |
| Digital Eyepiece |
1 |
Diameter 2.5,5,10mm Carbide Ball Indenter |
1 |
| Standard hardness block |
3 |
Large, V-type test bench |
1 |
| Power cable |
1 |
Product certification, product instruction manual |
1 |
| Fuse |
2 |
printer paper |
1 |
| RS232 Cable |
1 |
Dust cover |
1 |
